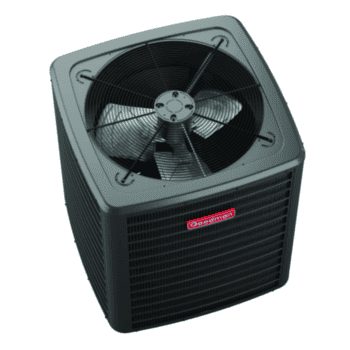

1.5 Ton Goodman Split Heat Pump 15.2 SEER2, – GSZH501810

Product Benefits

Meets new 2023 M1 test standards

Product Features

High-Efficiency scroll compressor	Service valves with sweat connections and easy access to gauge ports
SmartShift® technology to ensure quiet reliable defrost	Fully charged for 15′ of tubing length
Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T	Contactor with lug connection
Factory-installed suction-line accumulator	Ground lug connection
Factory-installed compressor crankcase heater	AHRI Certified
Factory-installed high-capacity muffler	ETL Listed
High- and low-pressure switches



Product Specification

Installation Type	Ducted
Communication Feature	No
Item Stocking Unit of Measure (UOM)	EA
Pallet Qty	2
Country of Origin	USA
US HTS Code	8415.90.8065
Product Description – (PIM)	15.2 seer2 hp, 1.5 ton
Compressor LRA	42.6 A
Compressor RLA	9.0 A
Max Overcurrent Protection	20.0 A
Max Voltage	253 V
Min. Circuit Amps	12.2 A
Min. Voltage	197 V
Outdoor Fan FLA	0.95 A
Power Frequency	60 Hz
Power Phase	1 Ph
Power Voltage	208/230 V
Condenser Fan Horsepower	1/6 metric hp
Factory Std. Refrigerant Charge	106 oz
Proposition 65 Label	Yes
Dimensions – (Case Depth)	30.50 in
Dimensions – (Case Height)	42.00 in
Dimensions – (Case Width)	30.00 in
Weight – (Case)	186.000 lb
