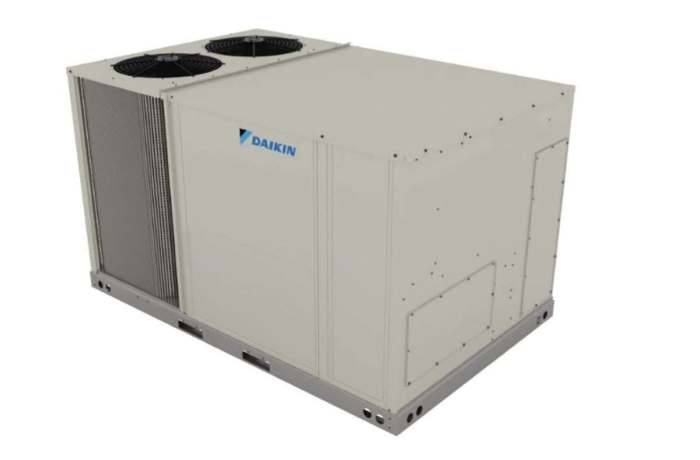

Daikin 15 Ton 400,000 BTU 10.8 EER Gas/Electric Light Commercial Packaged Unit – 460V 3 Phase – R32
Call for Price
The DSG light commercial heat pump packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 14 SEER unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.
Standard Features:
- R32 chlorine-free refrigerant
- Energy-efficient scroll compressor
- Factory-Installed Filter Drier
- Heater kits with single-point entry
- 24-volt terminal strip
- Convertible airflow orientation
- Built-in filter rack with standard 2″ filters
Product Benefits: Direct Drive ECM motor
Cabinet Features: Convertible airflow orientation
Attributes:
- Power Phase: 3 Ph
- Power Voltage: 460 V
- Energy Source: Gas
Description
| Daikin 15 Ton 400,000 BTU 10.8 EER Gas/Electric Light Commercial Packaged Unit – 460V 3 Phase – R32 | |
|---|---|
| SKU | DSG1804DH00001S |
| Refrigerant Charge | Pre-charged |
| Weight (in lbs) | 2025.000000 |
| Brand/Manufacturer | Daikin |
| Replaces | DFG1804DH00001S |
| Additional Information | Uses eight 20″ x 20″ x 2″ filters |
| Cooling BTU | 172,000 BTU |
| Heating BTU | 400,000 BTU |
| Drive Type | Direct |
| Maximum CFM | 5000 |
| Decibel Level (dBA) | 80.4 decibels |
| Motor RPM | 300-1600 |
| Horsepower | .333 HP |
| Configuration | Downflow |
| Refrigerant | R32 |
| EER | 10.8 |
| IEER | 14 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Electrical | 460 V. 3 Phase 60 Hz |
| Phase | Three Phase |
| Max Breaker Size | 50 amps |
| Min. Breaker Size | 44.4 amps |
| Tonnage | 15 Ton |
| Burner Stages | Modulating |
| Height | 51 11/16″ |
| Width | 133 7/8″ |
| Depth | 88 1/2″ |
