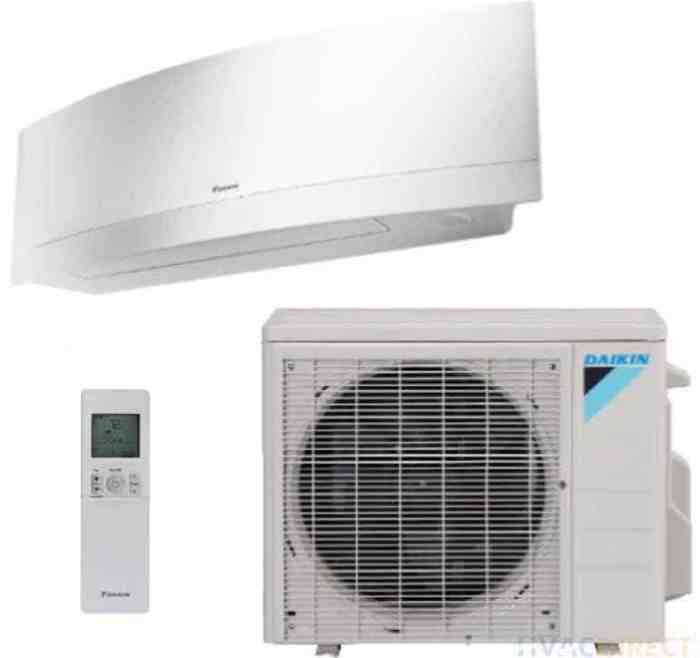

The Daikin 19 Series wall-mounted system provides you With energy efficiency and comfort control. Because it mounts onto the wall, it’s an ideal fit for rooms where floor space is at a premium. It comes With smart features that make operating the Unit easy, such as compatibility With the Comfort Control App that lets you control the Unit from your cell phone. The Auto-Restart feature saves the Unit’s settings and will restore the settings if the power goes out while the Unit is running. The outdoor Unit also features an anti-corrosion treatment and automatic defrosting, so it delivers optimum Heating performance. Standard Features ? Inverter Compressor ? Precharged for up to 33 ft of Liquid Line ? Self Diagnostics With Digital Display ? Econo Mode / Dry Function / Powerful Mode ? Auto Fan Speed Control ? Anti-Corrosion Treatment on Heat Exchanger ? Wireless Backlit, IR Remote Controller ? Indoor/Outdoor Unit Quiet Operation ? Auto Restart after Power Failure ? Max Piping (09/12 MBH): 65′ Length, 49′ Height ? Max Piping (18/24 MBH): 98′ Length, 66′ Height
Efficiency
Cooling
SEER 19
EER 12.5
Indoor Specifications
Airflow Rate (cfm)
Cooling
H M
434 311
L SL
247 145
Sound (dBA)
H / M / L / SL 45 / 37 / 30 / 19
Dimensions (H × W × D) (in) 11-1/4 × 30-5/16 × 8-3/4
Weight (Lbs) 18
Outdoor Specifications
Compressor Hermetically Sealed Swing Type
Refrigerant R-410A
Factory Charge (Lbs) 2.09
Refrigerant Oil PVE (FVC50K)
Airflow Rate (cfm)
Cooling
H 1,105
SL 865
Sound Pressure Level (dBA) 49
Dimensions (H × W × D) (in) 21-5/8 × 26-9/16 × 11-3/16
Weight (Lbs) 60
