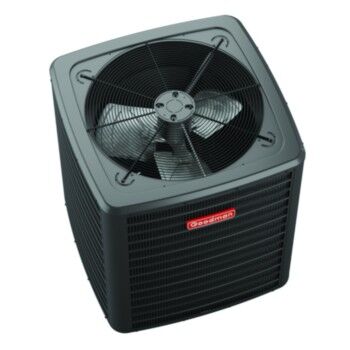

Goodman 5 Ton 17.2 SEERS R32 High-Efficiency Two Stage Heat Pump Condenser – GLZT7CA6010

GLZT7C Overview

Standard Features

• Two-Stage Copeland^® UltraTech scroll compressor
• High-density foam compressor sound blanket
• Integrated communicating ComfortBridge™ technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Goodman^® GTST Connected Thermostat Compatibility
• ComfortAlert™ built in diagnostics
• Copper tube/enhanced aluminum fin coil – 5mm on 2.0-3.0T
• Copper tube/enhanced aluminum fin coil – 7mm on 4.0-5.0 T
• Efficient, two-speed ECM condenser fan motor
• Simple low-voltage wiring to outdoor unit in communicating mode
• Diagnostic indicator lights and storage of six fault codes
• Color-coded terminal strip for non-communicating set-up
• High- and low-pressure switches
• Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed coil and ambient temperature sensors
• AHRI Certified; ETL Listed



Cabinet Features

• Grille-style sound control top design
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Single panel access to controls with space provided for field-installed accessories
• Sweat connection service valves with easy access to gauge ports
• When properly anchored, meets the 2024 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)



Attributes

• Energy Star Certified: Yes
• Heating Capacity Nominal: 60000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 16.2
• Unit Height: 35.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Goodman GTST Smart Thermostat
• Max Overcurrent Protection: 60 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Energy Source: Electric
• Unit Weight: 306 lb
• Tonnage: 5
• Model Efficiency: 17.2 SEER2
• Unit Depth: 41.625 in
