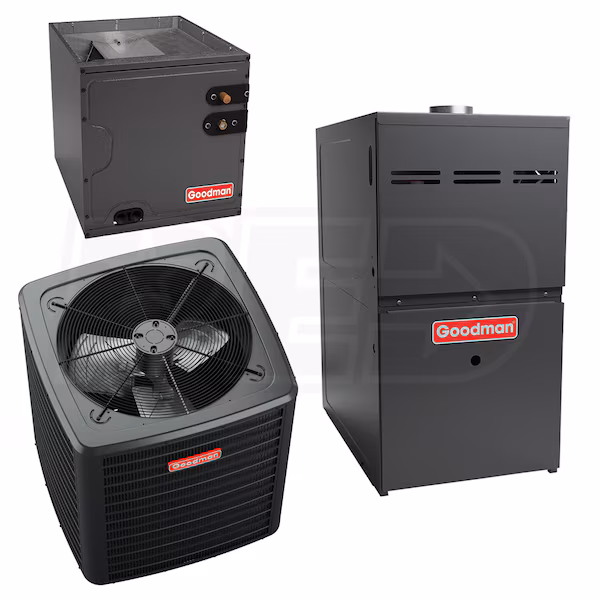

Goodman – 2.0 Ton Cooling – 60,000 BTU/Hr Heating – Air Conditioner + Multi Speed Furnace System – 16.0 SEER2 – 80% AFUE – Horizontal – R-32 (GLXS5BA2410 GR9S800603BN CHPTA3026B3) – GLXS5BA2410 – GR9S800603BN – CHPTA3026B3

All-Aluminum Evaporator Coil

• • Goodman’s evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Condensate Management

• • The CHPTA features foil-faced insulation to inhibit the formation of condensate and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections, keeping your system safe and operational.

Internal Thermostatic Expansion Valve

• • The CHPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

Advanced Heat Exchanger Design

• • The GR9S80 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger’s dependability and longevity.

Multi-Speed ECM Motor

• • The GR9S80’s energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.

Quiet Comfort

• • The blower and gas valve of the GR9S80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.

Self-Diagnostic Control Board

• • The GR9S80 continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates conditions for quick troubleshooting.

Easy Integration

• • The GR9S80 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

Energy-Efficient Compressor

• • This unit utilizes an energy-efficient scroll compressor to provide refrigerant flow.

Copper Tube/Enhanced Aluminum Fin Coil

• • The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.

Factory-Installed Filter Drier

• • A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.

Heavy-Gauge Galvanized-Steel Cabinet

• • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt spray approval, and a steel louver coil guard that protects your equipment from wear and tear.

Extended Warranty

• • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the warranty sheet under the “Manuals” tab for more information.

General Information

• Product Category: Furnace & Air Conditioner Package

• Operating Mode: Heating and Cooling

• Vent Type: Chimney Vent

• Modulating/Staging: Single Stage

• Refrigerant Type: R-32

• Blower Motor Type: ECM Multi-Speed

• Coil Width: 17.5 Inches

• Configuration: Horizontal

• Compressor Stages: Single Stage

• DOE Regional Compliance: Nationwide (Except CA)

• Installation Available: Yes

Performance

• AFUE: 80%

• Capacity: 2.0 Tons

• Cooling Capacity: 24,000 BTU

• Nominal Cooling Capacity: 24,000 BTU

• Heating BTU: 60,000

• Maximum Air Flow: 1200 CFM

• SEER2: 16.0

• EER2: 12.5

Dimensions

• Cabinet Width: 17 1/2 Inches

• Product Weight: 173 Pounds

• Shipping Weight: 188 Pounds

Certifications

• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 215380392
