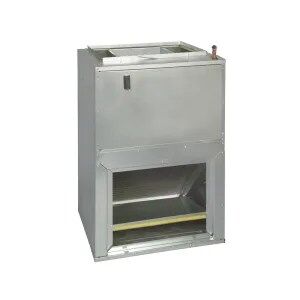

2 Ton AWUF Air Handler, Two-Speed PSC – AWUF241016
Call for Price
Due to the DOE requirements and government regulations regarding equipment phase-outs, we are currently facing certain challenges. We kindly request you to consider checking out the new model AWST24SU1410 we have available, which shares the same details as the old model AWUF241016. This updated model aligns with the necessary regulations and offers comparable functionality to meet your requirements.
New Model Link:- https://rockruthhvac.shop/product/awst-air-handler-multi-speed-ecm-6/
Cabinet Features-
1. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193;
2. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193;
3. Built-in filter rack (filter included);
4. Large chassis (2-1/2 and 3 ton units), front return only;
5. Small chassis (1-1/2 and 2 ton units), front or bottom return;
6. Wall-hanging bracket provided
| Product Description – (PIM) | 2 Ton, Wall-Mount, Unpainted, Air Handler |
| Installation Type | Ducted Wall Mounted |
| Universal Product Code (UPC) | |
| Cooling Capacity – (Nominal) | 24000 Btu/H |
| Cooling Capacity – (Nominal) | 24000 Btu/H |
| Product ID | AWUF241016 |
| Current Type | AC |
| Max Voltage | 253 V |
| Min. Voltage | 197 V |
| Min. Circuit Amps | 46/52.3 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Pipe Size Gas | 5/8 in |
| Refrigerant Type | R-410A |
| Tonnage | 2 |
| Pipe Size Gas | 5/8 in |
| Refrigerant Type | R-410A |
| Dimensions – (Shipping Unit Depth) | 17.00 in |
| Dimensions – (Shipping Unit Height) | 39.00 in |
| Dimensions – (Shipping Unit Width) | 21.50 in |
| Weight – (Unit) | 84 lb |
| Shipping Volume – (Unit) | 14254.500 in³ |
| Installation Configuration | Vertical |
| Blower Motor RPM | 1086 r/min |
