Sold out

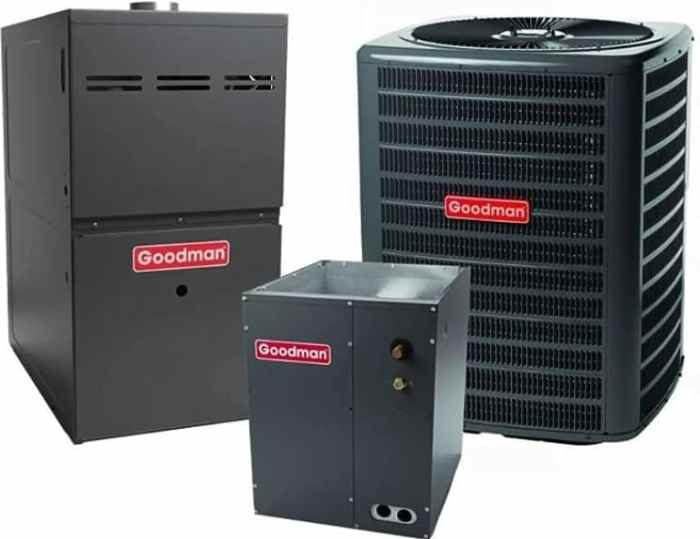

2 Ton Goodman 17.2 SEER2 Horizontal AC system with 80% AFUE 60k BTU Ultra-Low NOx Furnace (GSXC702410, CHPTA2426B4, GMVS800604BU)
Call for Price
Description
Product Specifications
| Installation Type | Ducted |
| Item Stocking Unit of Measure (UOM) | EA |
| Pallet Qty | 1 |
| Country of Origin | USA |
| US HTS Code | 8415.90.8065 |
| Product Description – (PIM) | 17.2 seer2 hp, 2 ton |
| Compressor LRA | 62.9 A |
| Compressor RLA | 10.0 A |
| Max Overcurrent Protection | 25 A |
| Max Voltage | 253 V |
| Min. Circuit Amps | 15.3 A |
| Min. Voltage | 197 V |
| Outdoor Fan FLA | 2.8 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Condenser Fan Horsepower | 1/3 metric hp |
| Factory Std. Refrigerant Charge | 105 oz |
| Proposition 65 Label | Yes |
| Dimensions – (Case Depth) | 37.00 in |
| Dimensions – (Case Height) | 42.00 in |
| Dimensions – (Case Width) | 37.00 in |
| Weight – (Case) | 241.090 lb |
Product Specifications
| Installation Type | Ducted |
| Country of Origin | USA |
| US HTS Code | 8415.90.8025 |
| Dimensions – (Unit Depth) | 26 in |
| Dimensions – (Unit Height) | 20 in |
| Dimensions – (Unit Width) | 28.50 in |
| Weight – (Unit) | 57 lb |
| Tonnage | 2.0 |
| Condensate Drain Outlet | 3/4 in |
| Pipe Size Gas | 7/8 in |
| Pipe Size Liquid | 3/8 in |
| Refrigerant Type | R-410A |
| Proposition 65 Label | Yes |
| Dimensions – (Case Depth) | 28.00 in |
| Dimensions – (Case Height) | 20.00 in |
| Dimensions – (Case Width) | 26.50 in |
| Weight – (Case) | 58.000 lb |
Product Specifications
| Installation Type | Ducted |
| Communication Feature | Yes |
| Communication Feature Type | ComfortBridge Technology compatible |
| Item Stocking Unit of Measure (UOM) | EA |
| Pallet Qty | 4 |
| Product Description – (PIM) | uln80 com furnace |
| AFUE | 80 % |
| AHRI Reference Number | 205747300 |
| ENERGY STAR® Certified | No |
| Temperature Rise Range High Fire | 20 °F |
| Temperature Rise Range Low Fire | 50 °F |
| Current Type | AC |
| Max Overcurrent Protection | 15 A |
| Min. Circuit Amps | 11.6 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Air Flow Rate (High) – Heating | 1760 ft³/min |
| Air Flow Rate (Low) – Heating | 1067 ft³/min |
| ANSI Certifed | Yes |
| Blower Available AC Tonnage High | 4 Tonnage |
| Blower Available AC Tonnage Low | 1.5 Tonnage |
| Blower Motor RPM | 1200 r/min |
| Dimensions – (Blower Diameter) | 8 in |
| Dimensions – (Blower Width) | 10 in |
| Dimensions – (Unit Depth) | 28 in |
| Dimensions – (Unit Height) | 33.3 in |
| Dimensions – (Unit Width) | 17-1/2 in |
| ETL Listed | Yes |
| External Static Pressure – (Rated) | 0.5 |
| Filter Quantity | 1 |
| Filter Size – (Min) | 16×25 |
| Heat Exchanger Type | Gas |
| Minimum Clearances to Combustible Materials | 1 ft |
| Motor Speed Type | Variable Speed ECM |
| NOx Burner Type | Ultra-Low NOx |
| Number Of Burners | 1 |
| Weight – (Unit) | 112 lb |
| Vent Diameter | 4 in |
| Proposition 65 Label | Yes |
| Dimensions – (Case Depth) | 30.00 in |
| Dimensions – (Case Height) | 35.50 in |
| Dimensions – (Case Width) | 18.50 in |
| Weight – (Case) | 76.750 lb |
